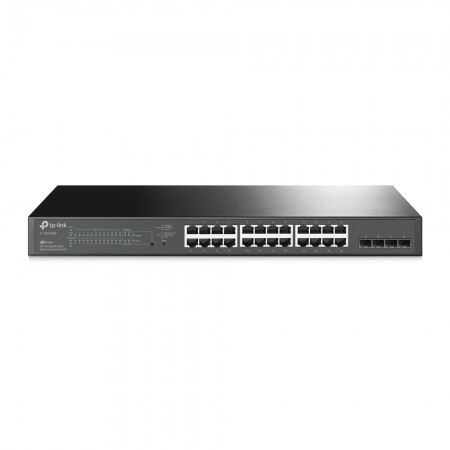

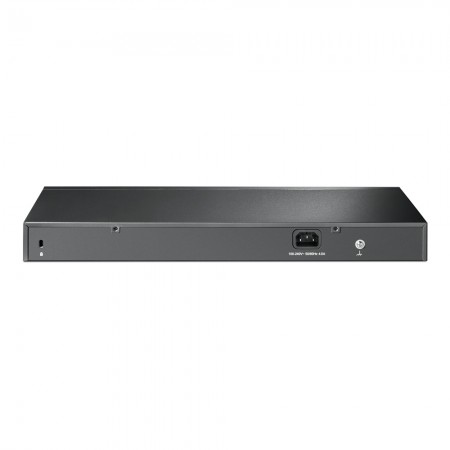

TP-Link TL-SG2428P Switch 28x10/100/1000 PoE
TP-Link TL-SG2428P Switch 28x10/100/1000 PoE TP-Link TL-SG2428P Switch 28x10/100/1000 PoE TP-Link TL-SG2428P Switch 28x10/100/1000 PoE TP-Link TL-SG2428P Switch 28x10/100/1000 PoE

TP-Link TL-SG2428P Switch 28x10/100/1000 PoE

24X 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX, 4× Gigabit SFP Slotsports, Fanless, Compatible With IEEE 802.3i Compliant PDs, FCC, CE, RoHS.

790,00 KM

Šifra artikla: 29442 Garancija: 24 mjeseci Kategorija:

RASPOLOŽIVOST U PRODAJNIM CENTRIMA

Sarajevo - Aria (BBI)

  • Sarajevo - Dobrinja

  • Sarajevo - TC Merkur

  • Goražde

  • Gracanica

  • Opis proizvoda

    Interface• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    • 4× Gigabit SFP Slots
    Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    • 1000BASE-X: MMF, SMF
    Fan Quantity2
    PoE+ Ports(RJ45)• Standard: 802.3at/af compliant
    • PoE+ Ports: 24 Ports
    • Power Supply: 250 W
    Dimensions ( W x D x H )17.3 × 8.7 × 1.73 in
    (440 × 220 × 44 mm)
    Mounting19" 1U rack mountable
    Max Power Consumption• 32.1 W (with no power device connected)
    • 308.6 W (with 250W power device connected)
    Max Heat Dissipation• 109.5 BTU/h (with no PD connected)
    • 1,052.9 BTU/h (with 250 W PD connected)
    PERFORMANCE
    Bandwidth/Backplane56 Gbps
    Packet Forwarding Rate41.7 Mpps
    MAC Address Table8K
    Packet Buffer Memory4.1 Mbit
    Jumbo Frame9 KB
    SOFTWARE FEATURES
    Quality of Service• 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port/Flow based Rating Limit
    • Smoother Performance
    • Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    L2 and L2+ Features• 16 IP Interfaces
    - Support IPv4/IPv6 Interface
    • Static Routing
    - 32 IPv4/IPv6 Static Routes
    • DHCP Server
    • DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Static ARP
    • Proxy ARP
    • Gratuitous ARP
    • Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports
    per group
    • Spanning Tree Protocol
    - 802.1D STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter/Protect,
    Root Protect
    • Loopback Detection
    • Flow Control
    - 802.3x Flow Control
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Flow-Based
    - Ingress/Egress/Both
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    VLAN• VLAN Group
    - Max. 4K VLAN Groups
    • 802.1Q tag VLAN
    • MAC VLAN
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    Access Control List• Support up to 230 entries
    • Time-Range
    - Time Slice
    - Week Time-Range
    - Absolute Time-Range
    - Holiday
    • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    - Source IP
    - Destination IP
    - IP Protocol
    - TCP Flag
    - TCP/UDP Source Port
    - TCP/UDP Destination Port
    - DSCP/IP TOS
    • IPv6 ACL
    • Combined ACL
    • Rule Operation
    - Permit/Deny
    • Policy Action
    - Mirror
    - Rate Limit
    - Redirect
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    • Actions for flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Security• AAA
    • 802.1X
    - Port based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and
    accountability
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • Port Isolation
    • Secure web management through HTTPS with
    SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI)
    management with SSHv1/SSHv2
    • IP/Port/MAC based access control
    IPv6• IPv6 Static Routing and ACL
    • IPv6 Dual IPv4/IPv6
    • IPv6 Interface
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP)
    version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet(v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    MANAGEMENT
    Omada AppYes
    Centralized Management• Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Management Features• Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    OTHERS
    CertificationCE, FCC, RoHS
    Package ContentsTL-SG2428P
    • Power Cord
    • Installation Guide
    • Rackmount Kit
    • Rubber Feet
    System RequirementsMicrosoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
    Environment• Operating Temperature: 0–50 ℃ (32–122 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
